Hollow Wall Anchors

Nylon Body, Carbon Steel Nail
Anchor Material

Carbon Steel – White Zinc Plated

Applications
  • Pictures
  • Lighting
  • Shelves
  • Cable Conduits to drywall
  • Wood strips
Advantage
  • Anti-Rotation lock
  • Fast and easy installation and removal
  • Non-flammable fixing
Base Material

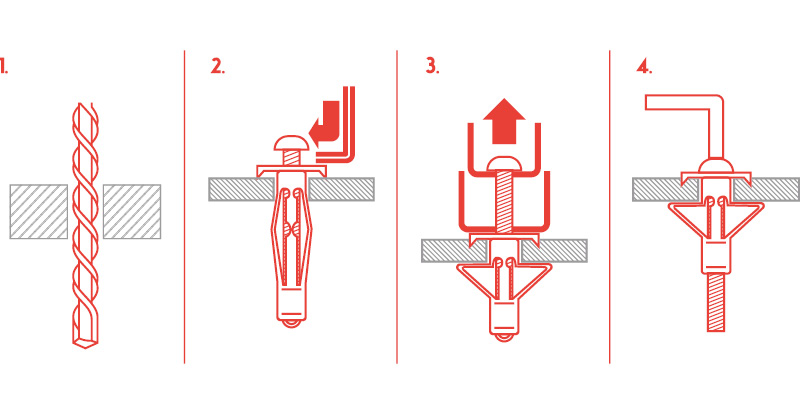

Installation Drawings
Product Range
Approvals
Data Sheets

Hollow Wall Anchors
Product Reference Anchor Size Screw Length Thread Size (UNC) Drill Diameter Wall Thickness Box Packing Carton Packing
HW0100100010 1/8 XS 1  1/16 6-32   5/16 1/8 to 1/4 100 500
HW0100100020 1/8 S 1 3/4 6-32   5/16 3/8 to 1/2 100 500
HW0100100030 1/8 L 2 1/4 6-32   5/16 5/8 to 1 100 500
HW0100100040 1/8 XL 2 11/16 6-32   5/16 1 1/4 to 1 1/2 50 250
HW0100100050 3/16 S 2 10-24  3/8 3/8 to 5/8 50 250
HW0100100060 3/16 L 2 1/2 10-24  3/8 3/4 to 1 1/8 50 250
HW0100100070 3/16 XL 3 10-24  3/8 1 1/4 to 1 3/4 25 125
HW0100100080 1/4 S 2 1/4 1/4-20   7/16 3/8 to 1/2 50 250
HW0100100090 1/4 L 2 3/4 1/4-20   7/16 5/8 to 1 1/8 50 250
HW0100100100 1/4 XL 3 3/8 1/4-20   7/16 1 1/4 to 1 3/4 25 125



Hollow Wall Anchors – Setting Tool
Product Reference Description Box Packing Carton Packing
HW0100200010 Setting Tool for all sizes of Hollow Wall Anchors 1 1

  Hollow Wall Anchors Datasheet
