Wedge Anchor

(Stainless Steel - A2-304 and A4-316) - Non Cracked Concrete
Anchor Material

Stainless Steel A2-304 Grade
Stainless Steel A4-316 Grade

Applications
  • Tension applications – Cable trays/Strut/Pipe supports
  • Barriers
  • Railings
  • Structural beams and columns
  • Warehouse racking
  • Safety related installations
Advantage
  • Consistant performance in all trypes of concrete
  • Drill size same as anchor size
  • Easy and simple installtion
  • Through fixing
  • Corrosion resistant
Base Material

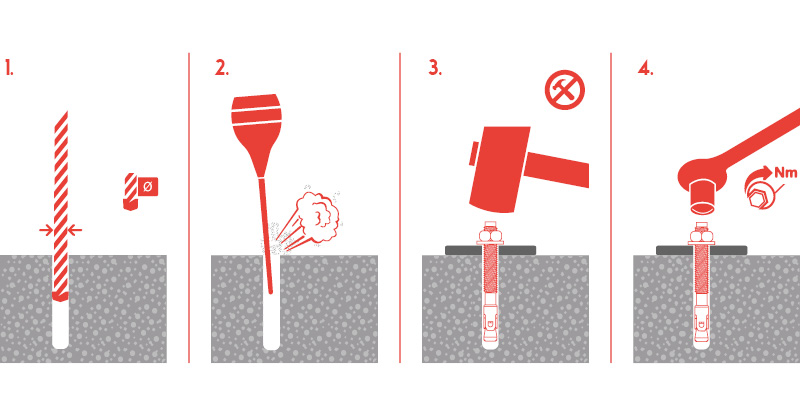

Installation Drawings
Product Range
Approvals
Data Sheets

Product Reference A2-304 Product Reference A4-316 Hole/Drill Diameter Anchor Length Min  embedment Depth Min Hole Depth Installation Torque ft.lbs (Nm) Box Packing Carton Packing
WA0100900010 WA0100950010  1/4 1 3/4 1 1/8 1 1/4 6 (8) 100 500
WA0100900020 WA0100950020  1/4 2 1/4 1 1/8 1 1/4 6 (8) 100 500
WA0100900030 WA0100950030  1/4 3 1/4 1 1/8 1 1/4 6 (8) 100 500
WA0100900040 WA0100950040  3/8 2 1/4 1 3/8 1 1/2 25 (34) 50 250
WA0100900050 WA0100950050  3/8 2 3/4 1 3/8 1 1/2 25 (34) 50 250
WA0100900060 WA0100950060  3/8 3 1 3/8 1 1/2 25 (34) 50 250
WA0100900070 WA0100950070  3/8 3 1/2 1 3/8 1 1/2 25 (34) 50 250
WA0100900080 WA0100950080  3/8 3 3/4 1 3/8 1 1/2 25 (34) 50 250
WA0100900090 WA0100950090  3/8 5 1 3/8 1 1/2 25 (34) 50 200
WA0100900100 WA0100950100  3/8 7 1 3/8 1 1/2 25 (34) 50 200
WA0100900110 WA0100950110  1/2 2 2/3 1 7/8 2 40 (54) 25 125
WA0100900120 WA0100950120  1/2 3 3/4 1 7/8 2 40 (54) 25 125
WA0100900130 WA0100950130  1/2 4 1/4 1 7/8 2 40 (54) 25 100
WA0100900140 WA0100950140  1/2 5 1/2 1 7/8 2 40 (54) 25 100
WA0100900150 WA0100950150  1/2 7 1 7/8 2 40 (54) 25 100
WA0100900160 WA0100950160  1/2 8 1/2 1 7/8 2 40 (54) 25 50
WA0100900170 WA0100950170  1/2 10 1 7/8 2 40 (54) 25 50
WA0100900180 WA0100950180  1/2 12 1 7/8 2 40 (54) 25 50
WA0100900190 WA0100950190  5/8 3 1/2 2 1/2 2 5/8 60 (81) 20 80
WA0100900200 WA0100950200  5/8 4 1/2 2 1/2 2 5/8 60 (81) 20 80
WA0100900210 WA0100950210  5/8 5 2 1/2 2 5/8 60 (81) 20 80
WA0100900220 WA0100950220  5/8 6 2 1/2 2 5/8 60 (81) 20 80
WA0100900230 WA0100950230  5/8 7 2 1/2 2 5/8 60 (81) 20 80
WA0100900240 WA0100950240  5/8 8 1/2 2 1/2 2 5/8 60 (81) 20 40
WA0100900250 WA0100950250  5/8 10 2 1/2 2 5/8 60 (81) 10 20
WA0100900260 WA0100950260  5/8 12 2 1/2 2 5/8 60 (81) 10 20
WA0100900270 WA0100950270  3/4 4 1/4 3 3/8 3 1/2 110 (149) 10 40
WA0100900280 WA0100950280  3/4 4 3/4 3 3/8 3 1/2 110 (149) 10 40
WA0100900290 WA0100950290  3/4 5 1/2 3 3/8 3 1/2 110 (149) 10 40
WA0100900300 WA0100950300  3/4 6 1/4 3 3/8 3 1/2 110 (149) 10 40
WA0100900310 WA0100950310  3/4 7 3 3/8 3 1/2 110 (149) 10 40
WA0100900320 WA0100950320  3/4 8 1/2 3 3/8 3 1/2 110 (149) 10 20
WA0100900330 WA0100950330  3/4 10 3 3/8 3 1/2 110 (149) 10 20
WA0100900340 WA0100950340  3/4 12 3 3/8 3 1/2 110 (149) 5 10
