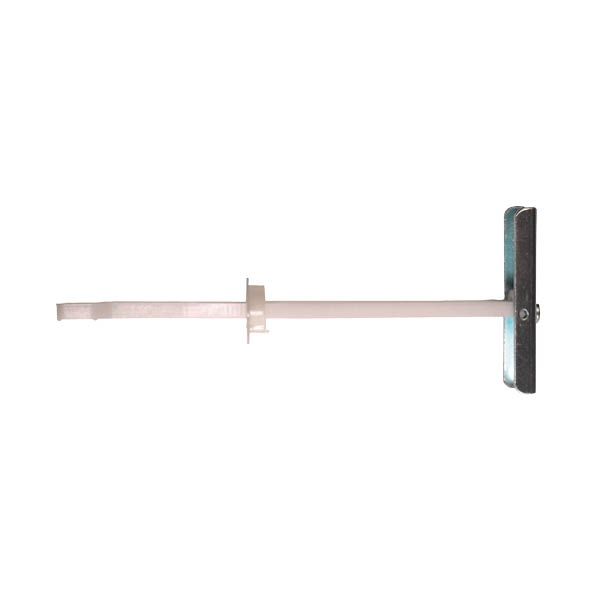

Strap Toggle HTPA

Engineered Plastic and Carbon Steel
Anchor Material

Engineered Plastic
with a Carbon Steel Wing

Applications
  • Heavy Duty Cavity Wall Anchor
  • Balustrade
  • Kitchen cabinets.
Advantage
  • Fully adjustable for different wall thickness
  • Re-usable
  • Quick and easy installation
  • No setting required
  • Support up to 30kg
Base Material

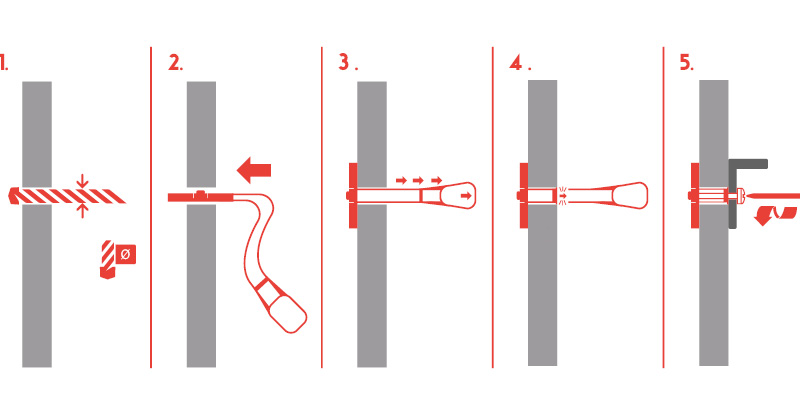

Installation Drawings
Product Range
Approvals
Data Sheets

Product Reference Anchor Diameter Anchor Length Drill Diameter Wall Thickness Thread Size (UNC) Box Packing Carton Packing
TA0100400010   3/16 4  1/2 3/8 – 2 1/2 3/16 – 24 50 300
TA0100400020  1/4 4  1/2 3/8 – 2 1/2 1/4 – 20 50 300
TA0100400030  3/8 4  3/4 3/8 – 2 1/2 3/8 – 16 25 150
TA0100400040  1/2 4  3/4 3/8 – 2 1/2 1/2 – 13 25 150
