Sleeve Anchor

White Zinc Plated
Anchor Material

Carbon Steel – white zinc plating

Applications
  • Lightweight structures
  • Electrical and Mechanical
  • Shelving and steel sections
Advantage
  • Variety of Head types
  • Fixture clamp down feature
  • All steel component design
  • Pre-assembled anchor for quick installation

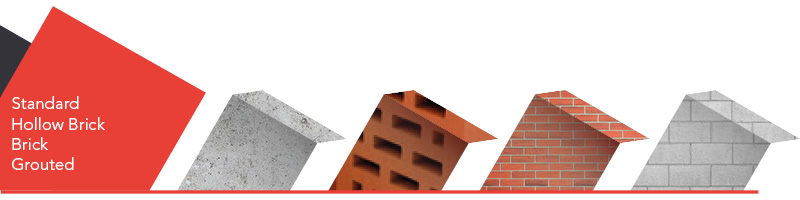

Base Material

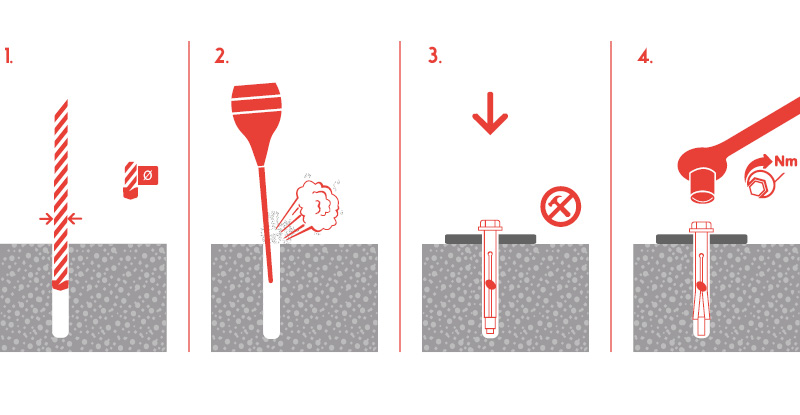

Installation Drawings
Product Range
Approvals
Data Sheets

Hex Nut Type
Product Reference Hole/Drill Diameter Anchor Length Max.Fixture Thickness Wrench Size Box Packing Carton Packing
SA0100100010   5/16 1 1/2  3/8   7/16 100 500
SA0100100020   5/16 2 1/2 1  1/16   7/16 50 250
SA0100100030  3/8 1 7/8  3/8  1/2 50 250
SA0100100040  3/8 3 1 1/2  1/2 50 200
SA0100100050  3/8 4 2 1/4  1/2 50 200
SA0100100060  1/2 2 1/4  1/2   9/16 50 200
SA0100100070  1/2 3  3/4   9/16 25 100
SA0100100080  1/2 4 1 3/4   9/16 25 100
SA0100100090  1/2 6 3 3/8   9/16 20 80
SA0100100100  5/8 2 1/4  1/2  3/4 25 100
SA0100100110  5/8 3  3/4  3/4 20 80
SA0100100120  5/8 4 1/4 1 1/2  3/4 10 40
SA0100100130  5/8 6 3 1/4  3/4 10 40
SA0100100140  3/4 2 1/2  1/2  15/16 10 40
SA0100100150  3/4 4 1/4  7/8  15/16 10 40
SA0100100160  3/4 6 1/4 2 7/8  15/16 5 20



Round Head Type
Product Reference Hole/Drill Diameter Anchor Length Max.Fixture Thickness Phillips Drive Size Box Packing Carton Packing
SA0100200010  1/4 2  7/8 #3 100 500
SA0100200020  1/4 2 3/4 1 5/8 #3 50 250
SA0100200030  3/8 2 1/2 1 #4 50 200
SA0100200040  3/8 3 3/4 2 1/4 #4 50 200
SA0100200050  3/8 4 3/4 3 1/4 #4 50 200



Flat Head Type
Product Reference Hole/Drill Diameter Anchor Length Max.Fixture Thickness Phillips Drive Size Box Packing Carton Packing
SA0100300010  1/4 2  7/8 #2 100 500
SA0100300020  1/4 3 1 7/8 #2 50 250
SA0100300030   5/16 2 1/2 1  1/16 #3 50 250
SA0100300040   5/16 3 1/2 2  1/16 #3 50 250
SA0100300050  3/8 2 3/4 1 1/4 #4 50 200
SA0100300060  3/8 4 2 1/2 #4 50 200
SA0100300070  3/8 5 3 1/2 #4 50 200
SA0100300080  3/8 6 4 1/2 #4 50 200



Acorn Head Type
Product Reference Hole/Drill Diameter Anchor Length Max.Fixture Thickness Wrench Size Box Packing Carton Packing
SA0100400010  1/4 1 3/8  1/4  3/8 100 500
SA0100400020  1/4 2 1/4 1 1/8  3/8 100 500
