Shield Anchor - Single & Double

Zinc Alloy
Anchor Material

Zamac Alloy

Applications
  • Ventilation
  • Electrical and telecommunication installations
  • Securing of scaffolding and false-works
  • Suspending ceilings (double only)
  • Lighting (double only)
Advantage
  • Internal thread accepts machine bolts
  • Corrosion resistance
  • Easy to remove installations
  • For use in solid base materials and hollow core slabs
Base Material

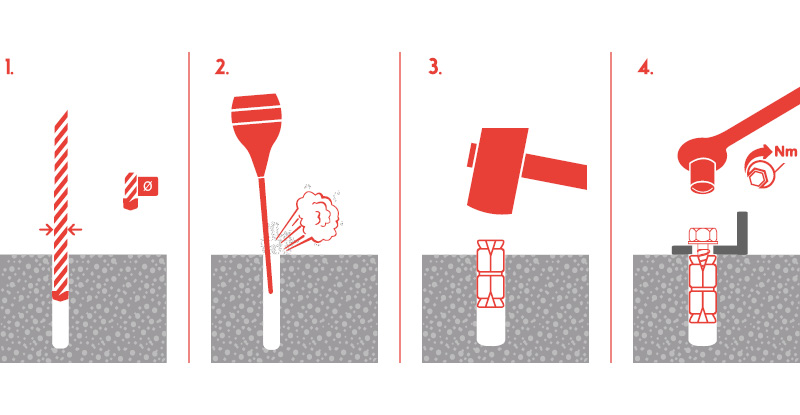

Installation Drawings
Product Range
Approvals
Data Sheets

Single

Double

Shield Anchor – Single
Product Reference Anchor/Rod Diameter Anchor Body Length Drill Diameter Thread Depth Installation Torque ft.lbs Box Packing Carton Packing
SA0100100010 1/4 1  5/16 1/2 5/16 5 50 250
SA0100100020 5/16 1 1/2 5/8 5/16 7 50 250
SA0100100030 3/8 1 1/2 5/8 5/16 10 50 250
SA0100100040 1/2 2 1/16 7/8 7/16 20 25 125
SA0100100050 5/8 2 5/8 1 5/8 30 25 125



Shield Anchor – Double
Product Reference Anchor/Rod Diameter Anchor Body Length Drill Diameter Thread Depth Installation Torque ft.lbs Box Packing Carton Packing
SA0100200010  1/4 1 3/8  1/2  1/2 5 50 500
SA0100200020   5/16 1 5/8  5/8  1/2 7 50 500
SA0100200030  3/8 2  3/4  5/8 10 50 250
SA0100200040  1/2 2 1/2  7/8  3/4 20 25 250
SA0100200050  5/8 2 3/4 1  7/8 30 25 100
SA0100200060  3/4 3 15/16 1 1/4 1 1/8 60 10 50
