Plastic Toggle Anchors

Engineered Plastic
Anchor Material

Engineered Plastic

Applications
  • Electric Boxes
  • Bathroom Accessories
  • Smoke detectors and alarms
  • Shelving
  • Lighting Fixtures
  • Mirrors
Advantage
  • Pre-installation without screw
  • Flush screw head against fixture
  • One piece anchor for simple setting
Base Material

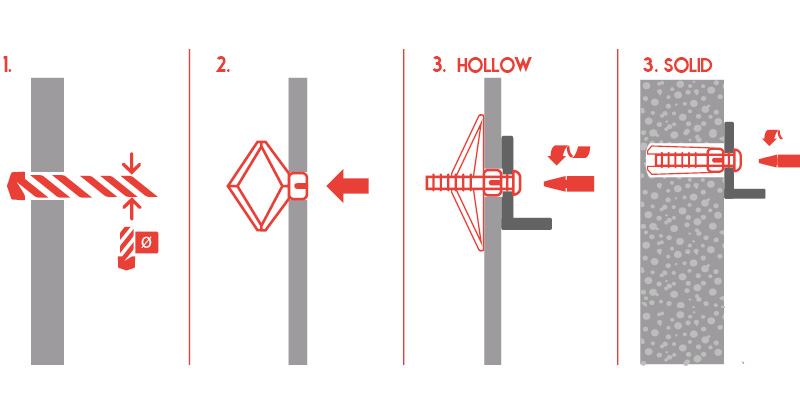

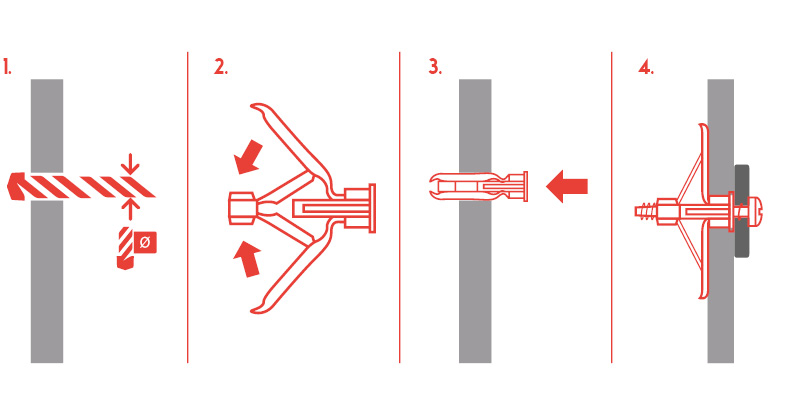

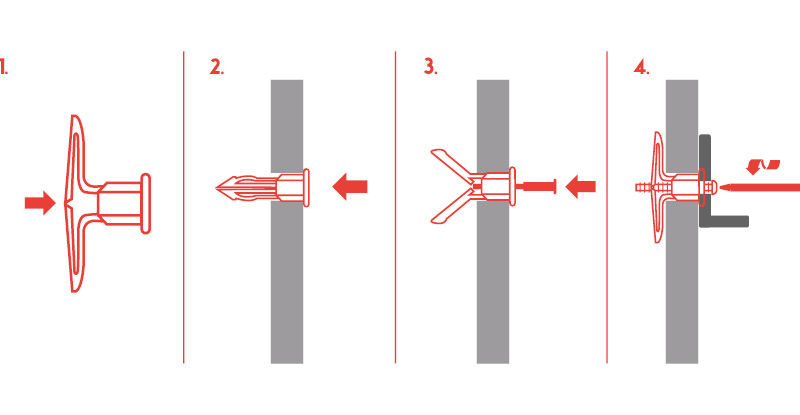

Installation Drawings
Product Range
Approvals
Data Sheets

PTA1

PTA2

PTA3

Toggle Anchor – PTA1
Product Reference Anchor Size Wall Thickness Drill Diameter Min. Screw length Screw Size Range Box Packing Carton Packing
TA0100100010 Short 3/16 to 5/8  3/8 1  1/4 8 or 10 100 1000
TA0100100020 Medium 5/8 to 7/8  3/8 1 1/4 8 or 10 100 1000
TA0100100030 Long 15/16 to 1 1/4  3/8 1  9/16 8 or 10 100 1000



Toggle Anchor – PTA2
Product Reference Anchor Size Wall Thickness Drill Diameter Min. Screw length Screw Size Range No. Box Packing Carton Packing
TA0100200010 Mini  1/8   5/16 1 6-12 100 1000
TA0100200020 Short  3/8   5/16 1  4/16 6-12 100 1000
TA0100200030 Medium  1/2   5/16 1  4/16 6-12 100 1000
TA0100200040 Long  5/8   5/16 1 1/2 6-12 100 1000
TA0100200050 Extra long  3/4   5/16 1 3/4 6-12 100 1000
TA0100200060 Super long 1   5/16 2 6-12 100 1000



Toggle Anchor – PTA3
Product Reference Anchor Size Anchor Length Drill Diameter Grip Range Rec Screw Size No. Box Packing Carton Packing
TA0100300010 Short 2 1/8   5/16 1/8 to 1/4 6 to 14 100 1000
TA0100300020 Medium 2 1/8   5/16 3/8 to 1/2 6 to 14 100 1000
TA0100300030 Long 2 1/8   5/16 5/8 to 3/4 6 to 14 100 1000
