Metal Hammer Drive Anchors

White Zinc Plated and Black Phosphate
Anchor Material

Carbon Steel – white zinc plating
Carbon Steel – black phosphate coating

Applications
  • Pipe hanging
  • Cable trays
  • Metal tracking
  • Security fixtures
  • Concrete form-works
Advantage
  • One piece pre-expanding anchor
  • Tamper proof (Flat and Mushroom Head)
Base Material

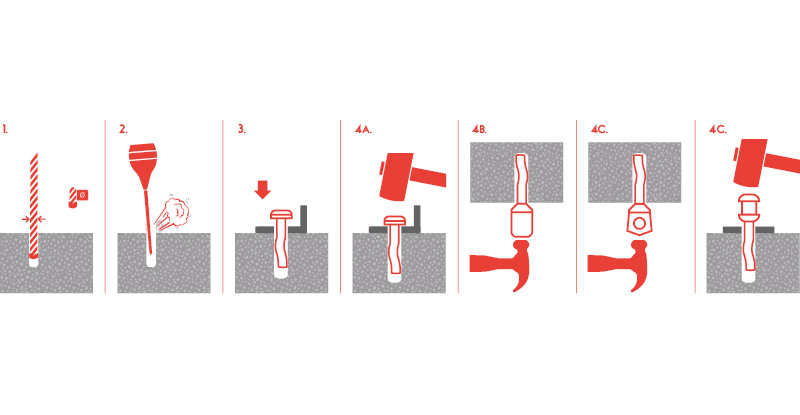

Installation Drawings
Product Range
Approvals
Data Sheets

MHD Flat Head – BZP
Product Reference Anchor Diameter Anchor Length Drill Diameter Min embedment Depth Fixture Clearance hole Box Packing Carton Packing
MH0100100010   3/16 2 1/2   3/16 1 1/4 1/4 100 1000
MH0100100020   3/16 3   3/16 1 1/4 1/4 100 1000
MH0100100030   3/16 4   3/16 1 1/4 1/4 100 1000
MH0100100040 1/4 1 1/2 1/4 1 1/4   5/16 100 1000
MH0100100050 1/4 2 1/4 1 1/4   5/16 100 1000
MH0100100060 1/4 2 1/2 1/4 1 1/4   5/16 100 1000
MH0100100070 1/4 3 1/4 1 1/4   5/16 100 1000
MH0100100080 1/4 3 1/2 1/4 1 1/4   5/16 100 1000
MH0100100090 1/4 4 1/4 1 1/4   5/16 100 500



MHD Mushroom Head – BZP
Product Reference Anchor Diameter Anchor Length Drill Diameter Min embedment Depth Fixture Clearance hole Box Packing Carton Packing
MH0100200010   3/16 1   3/16  7/8 1/4 100 1000
MH0100200020   3/16 1 1/4   3/16  7/8 1/4 100 1000
MH0100200030   3/16 1 1/2   3/16 1 1/4 1/4 100 1000
MH0100200040   3/16 2   3/16 1 1/4 1/4 100 1000
MH0100200050   3/16 2 1/2   3/16 1 1/4 1/4 100 500
MH0100200060   3/16 3   3/16 1 1/4 1/4 100 500
MH0100200070   3/16 3 1/2   3/16 1 1/4 1/4 100 500
MH0100200080   3/16 4   3/16 1 1/4 1/4 100 500
MH0100200090 1/4 1 1/4  7/8   5/16 100 1000
MH0100200100 1/4 1 1/4 1/4 1   5/16 100 1000
MH0100200110 1/4 1 1/2 1/4 1 1/4   5/16 100 1000
MH0100200120 1/4 2 1/4 1 1/4   5/16 100 500
MH0100200130 1/4 2 1/2 1/4 1 1/4   5/16 100 500
MH0100200140 1/4 3 1/4 1 1/4   5/16 100 500
MH0100200150 1/4 3 1/2 1/4 1 1/4   5/16 100 500
MH0100200160 1/4 4 1/4 1 1/4   5/16 100 500
MH0100200170  3/8 2  3/8 1 3/4   7/16 25 250
MH0100200180  3/8 2 1/2  3/8 1 3/4   7/16 25 250
MH0100200190  3/8 3  3/8 1 3/4   7/16 25 250
MH0100200200  3/8 3 1/2  3/8 1 3/4   7/16 25 250
MH0100200210  3/8 4  3/8 1 3/4   7/16 25 250
MH0100200220  3/8 5  3/8 1 3/4   7/16 25 250
MH0100200230  3/8 6  3/8 1 3/4   7/16 25 250
MH0100200240  1/2 2 3/4  1/2 2 1/2   9/16 50 200
MH0100200250  1/2 3 1/2  1/2 2 1/2   9/16 50 150
MH0100200260  1/2 4  1/2 2 1/2   9/16 25 150
MH0100200270  1/2 5  1/2 2 1/2   9/16 25 150
MH0100200280  1/2 6 1/2  1/2 2 1/2   9/16 25 150



MHD Mushroom Head – Black Phosphate
Product Reference Anchor Diameter Anchor Length Drill Diameter Min embedment Depth Fixture Clearance hole Box Packing Carton Packing
MH0100300010   3/16 1   3/16  7/8 1/4 100 1000
MH0100300020   3/16 1 1/4   3/16  7/8 1/4 100 1000
MH0100300030   3/16 1 1/2   3/16 1 1/4 1/4 100 1000
MH0100300040   3/16 2   3/16 1 1/4 1/4 100 1000
MH0100300050   3/16 2 1/2   3/16 1 1/4 1/4 100 500
MH0100300060   3/16 3   3/16 1 1/4 1/4 100 500
MH0100300070   3/16 3 1/2   3/16 1 1/4 1/4 100 500
MH0100300080   3/16 4   3/16 1 1/4 1/4 100 500
MH0100300090 1/4 1 1/4  7/8   5/16 100 1000
MH0100300100 1/4 1 1/4 1/4 1   5/16 100 1000
MH0100300110 1/4 1 1/2 1/4 1 1/4   5/16 100 1000
MH0100300120 1/4 2 1/4 1 1/4   5/16 100 500
MH0100300130 1/4 2 1/2 1/4 1 1/4   5/16 100 500
MH0100300140 1/4 3 1/4 1 1/4   5/16 100 500
MH0100300150 1/4 3 1/2 1/4 1 1/4   5/16 100 500
MH0100300160 1/4 4 1/4 1 1/4   5/16 100 500
MH0100300170  3/8 2  3/8 1 3/4   7/16 25 250
MH0100300180  3/8 2 1/2  3/8 1 3/4   7/16 25 250
MH0100300190  3/8 3  3/8 1 3/4   7/16 25 250
MH0100300200  3/8 3 1/2  3/8 1 3/4   7/16 25 250
MH0100300210  3/8 4  3/8 1 3/4   7/16 25 250
MH0100300220  3/8 5  3/8 1 3/4   7/16 25 250
MH0100300230  3/8 6  3/8 1 3/4   7/16 25 250
MH0100300240  1/2 2 3/4  1/2 2 1/2   9/16 50 200
MH0100300250  1/2 3 1/2  1/2 2 1/2   9/16 50 150
MH0100300260  1/2 4  1/2 2 1/2   9/16 25 150
MH0100300270  1/2 5  1/2 2 1/2   9/16 25 150
MH0100300280  1/2 6 1/2  1/2 2 1/2   9/16 25 150



MHD Overhead Thread – BZP
Product Reference Anchor Diameter Head Diameter Drill Diameter Min embedment Depth Thread Size (UNC) Box Packing Carton Packing
MH0100400010 1/4  1/2   3/16 1 1/4 1/4-20 100 1000
MH0100400020  3/8  5/8 1/4 1 3/4 3/8-16 50 500



MHD Tie Wire – BZP
Product Reference Anchor Diameter Tie Wire hole size Drill Diameter Min embedment Depth Head Height Box Packing Carton Packing
MH0100500010   3/16   3/16   3/16 1 1/4 37/64 100 500
MH0100500020 1/4   9/32 1/4 1 3/4 41/64 100 500



MHD Forming – BZP
Product Reference Anchor Diameter Tie Wire hole size Drill Diameter Min embedment Depth Fixture Clearance hole Box Packing Carton Packing
MH0100600010   3/16 1 1/2   3/16 1 1/4 1/4 100 500
MH0100600020   3/16 2   3/16 1 1/4 1/4 100 500
MH0100600030   3/16 2 3/4   3/16 1 1/4 1/4 100 500
MH0100600040 1/4 2 3/4 1/4 1 1/4   5/16 100 500
