HeadNEX Structural Wood Screws

Perma-Steel Coated
Anchor Material

Perma-Steel Coated

Applications
  • Decking
  • Wooden Stair cases
  • MDF Panels
  • Roofing insulation
Advantage
  • Under head chamfer for increased strength
  • Wafer Head for increased pull through
  • Variety of lengths covers many application
Base Material

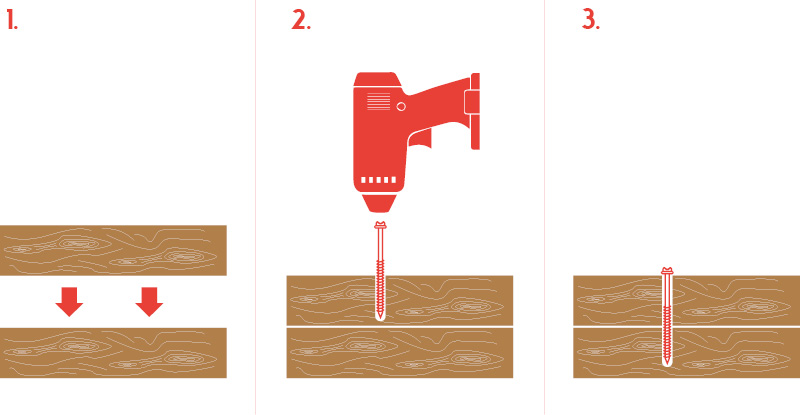

Installation Drawings
Product Range
Approvals
Data Sheets

Box packaging
Product Reference Anchor Diameter Anchor Length Thread Length Spider Drive Box Packing
SS0100700010 1/4 1 5/8 2 #3 50
SS0100700020 1/4 2 7/8 2 #3 50
SS0100700030 1/4 3 3/4 2 #3 50
SS0100700040 1/4 4 1/2 2 #3 50
SS0100700050 1/4 5 2 #3 50
SS0100700060 1/4 5 1/2 2 #3 50
SS0100700070 1/4 6 2 #3 50
SS0100700080 1/4 6 1/2 2 #3 50
SS0100700090 1/4 7 2 #3 50
SS0100700100 1/4 7 1/2 2 #3 50
SS0100700110 1/4 8 2 #3 50
SS0100700120 1/4 8 1/2 2 #3 50
SS0100700130 1/4 9 2 #3 50
SS0100700140 1/4 9 1/2 2 #3 50
SS0100700150 1/4 10 2 #3 50
SS0100700160 1/4 11 2 #3 50
SS0100700170 1/4 12 2 #3 50
SS0100700180 1/4 13 2 #3 50
SS0100700190 1/4 14 2 #3 50
SS0100700200 1/4 15 2 #3 50
SS0100700210 1/4 16 2 #3 50
SS0100700220 1/4 18 2 #3 50



Tub packaging
Product Reference Anchor Diameter Anchor Length Thread Length Spider Drive Box Packing
SS0100800010 1/4 1 5/8 2 #3 500
SS0100800020 1/4 2 7/8 2 #3 250
SS0100800030 1/4 3 3/4 2 #3 250
SS0100800040 1/4 4 1/2 2 #3 250
SS0100800050 1/4 5 2 #3 250
SS0100800060 1/4 5 1/2 2 #3 250
SS0100800070 1/4 6 2 #3 250
SS0100800080 1/4 6 1/2 2 #3 250
SS0100800090 1/4 7 2 #3 250
SS0100800100 1/4 7 1/2 2 #3 250
SS0100800110 1/4 8 2 #3 250
SS0100800120 1/4 8 1/2 2 #3 250
SS0100800130 1/4 9 2 #3 250
SS0100800140 1/4 9 1/2 2 #3 250
SS0100800150 1/4 10 2 #3 250
SS0100800160 1/4 11 2 #3 250
SS0100800170 1/4 12 2 #3 250
SS0100800180 1/4 13 2 #3 250
SS0100800190 1/4 14 2 #3 250
SS0100800200 1/4 15 2 #3 250
SS0100800210 1/4 16 2 #3 250
SS0100800220 1/4 18 2 #3 250
