Drop-In Anchors

(White Zinc Plated and Stainless Steel) - Non Cracked Concrete
Anchor Material

Carbon Steel – white zinc plating
Stainless Steel A2-304 Grade
Stainless Steel A4-316 Grade

Applications
  • Cable trays
  • Fire sprinklers
  • Suspended conduit
  • Concrete form-work
  • Suspended ceiling and lighting
  • Telecommunication installations
Advantage
  • Simple fastening removal
  • Allows for short embedment
  • Lipped version installs flush
  • Non-Lipped version for deeper embedment
Base Material

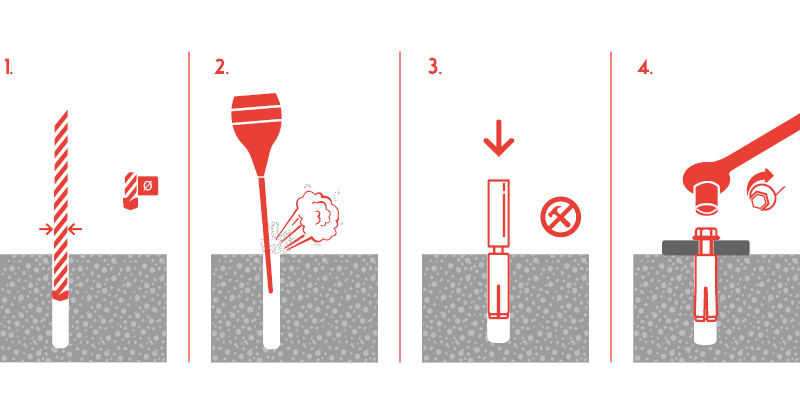

Installation Drawings
Product Range
Approvals
Data Sheets

Drop-In Anchor BZP – Non-Lipped
Product Reference Anchor/Rod Diameter Anchor Body Length Drill Diameter Thread Depth Installation Torque ft.lbs Box Packing Carton Packing
DA0100100010 1/4 1 3/8 7/16 5 100 500
DA0100100020 3/8 1 1/2 1/2 5/8 10 50 250
DA0100100030 1/2 2 5/8 13/16 20 50 200
DA0100100040 5/8 2 1/2 7/8 1 3/16 40 25 100
DA0100100050 3/4 3 1/8 1 1 3/8 80 20 80



Drop-In Anchor A2-304 Stainless Steel – Non Lipped
Product Reference Anchor/Rod Diameter Anchor Body Length Drill Diameter Thread Depth Installation Torque ft.lbs Box Packing Carton Packing
DA0100200010 1/4 1 3/8 7/16 5 100 500
DA0100200020 3/8 1 1/2 1/2 5/8 10 50 250
DA0100200030 1/2 2 5/8 13/16 20 50 200
DA0100200040 5/8 2 1/2 7/8 1 3/16 40 25 100
DA0100200050 3/4 3 1/8 1 1 3/8 80 20 80



Drop-In Anchor A4-316 Stainless Steel – Non Lipped
Product Reference Anchor/Rod Diameter Anchor Body Length Drill Diameter Thread Depth Installation Torque ft.lbs Box Packing Carton Packing
DA0100300010  1/4 1  3/8   7/16 5 100 500
DA0100300020  3/8 1 1/2  1/2  5/8 10 50 250
DA0100300030  1/2 2  5/8  13/16 20 50 200
DA0100300040  5/8 2 1/2  7/8 1  3/16 40 25 100
DA0100300050  3/4 3 1/8 1 1 3/8 80 20 80



Drop-In Anchor BZP – Lipped
Product Reference Anchor/Rod Diameter Anchor Body Length Drill Diameter Thread Depth Installation Torque ft.lbs Box Packing Carton Packing
DA0100400010  1/4 1  3/8   7/16 5 100 500
DA0100400020  3/8 1 1/2  1/2  5/8 10 50 250
DA0100400030  1/2 2  5/8  13/16 20 50 200



Drop-In Anchor Coil Thread BZP – Non Lipped
Product Reference Anchor/Rod Diameter Anchor Body Length Drill Diameter Thread Depth Installation Torque ft.lbs Box Packing Carton Packing
DA0100400010 1/2 2 5/8 13/16 20 50 200
DA0100400020 3/4 3 1/8 1 1 3/8 80 20 80



Drop-In Anchor Setting Tools
Product Reference Anchor/Rod Diameter Tool Length For use with: Box Packing
DA0100500010  1/4 39/64 DA0100100010 / DA0100200010 / DA0100300010 / DA0100300010 1
DA0100500020  3/8 61/64 DA0100100020 / DA0100200020 / DA0100300020 / DA0100300020 1
DA0100500030  1/2 1  3/16 DA0100100030 / DA0100200030 / DA0100300030 / DA0100300030 / DA0100400010 1
DA0100500040  5/8 1  5/16 DA0100100040 / DA0100200040 / DA0100300040 / DA0100300040 1
DA0100500050  3/4 1 61/64 DA0100100050 / DA0100200050 / DA0100300050 / DA0100300050 / DA0100400020 1
