Concrete Bolt Rod Hanger

(White Zinc Plated) Cracked and Non Cracked Concrete
Anchor Material

Carbon Steel – White Zinc Plating

Applications
  • Suspended ceilings
  • Cable trays
  • Overhead utilities
  • Air conditioning
  • Ventilation systems
  • Lighting systems
Advantage
  • Quick installation time
  • Stress applied across full length of anchor
  • Can be installed close to edge applications
  • Fully removable

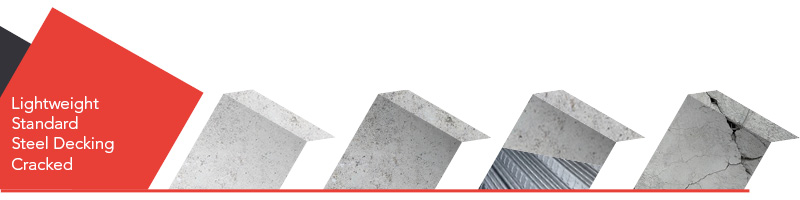

Base Material

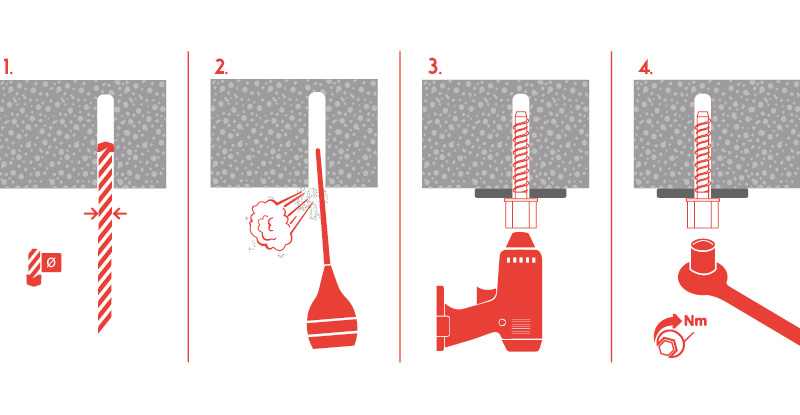

Installation Drawings
Product Range
Approvals
Data Sheets

Product Reference Anchor Screw Diameter Anchor Screw Length Min. Hole Depth Min. Embedment Depth Installation Torque ft.lbs (Nm) Socket Size Box Packing Carton Packing
CB0100300010  1/4 1 5/8 2 | 2 7/8 1 5/8 | 2 1/2 19 (26)  3/8 25 125
CB0100300020  1/4 1 5/8 2 | 2 7/8 1 5/8 | 2 1/2 19 (26)  1/2 25 125
CB0100300030  1/4 2 1/2 2 | 2 7/8 1 5/8 | 2 1/2 19 (26)  1/2 25 125
